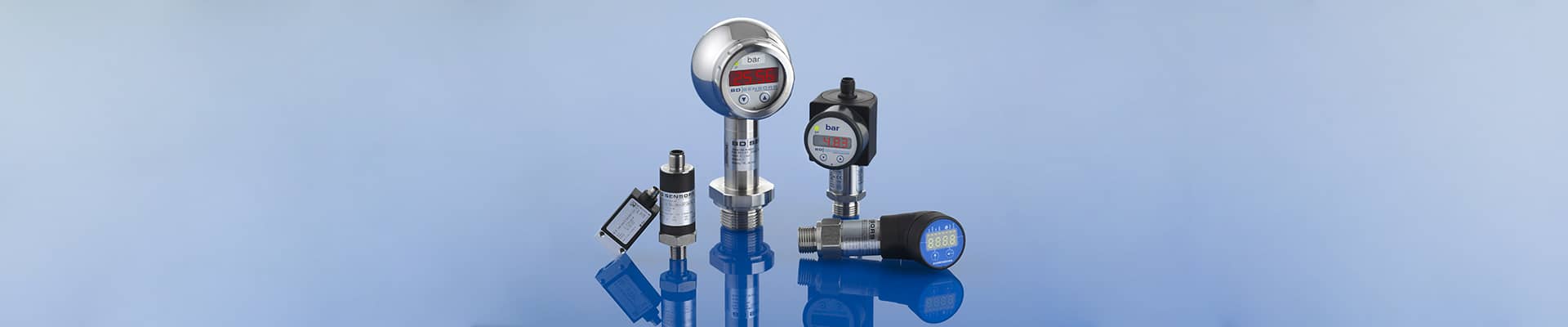

Electronic pressure switches

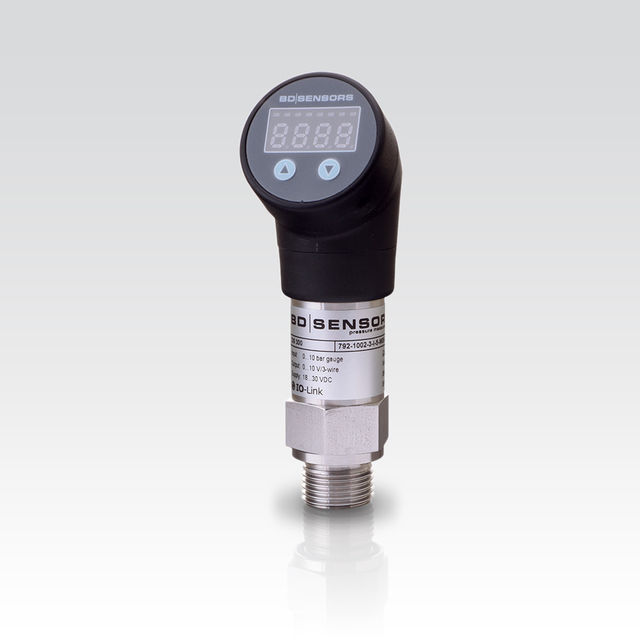

Types with display

pressure range 0 ... 6mbar to 0 ... 2200 bar
with up to 4 contacts

Due to the simple handling as well as the variety of software features (switching points and hysteresis freely configurable, delay function, Min/Max-value data storage, display and analogue output signal scalable, etc.) the DS 200 / DS 400 series is especially suitable as an intelligent pressure switch for general plant and machine construction and the processing industry.

Types without display

pressure ranges 0 ... 1 bar up to0 ... 400 bar
for OEM applications

These electronic pressure switches are used in hydraulic and pneumatic applications for monitoring and controlling the pressure via switching outputs.

DS 400

stainless steel sensor
Hygienic Design

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar
accuracy:0.35 % (opt. 0.25 %) FSO

DS 401

ceramic sensor
universal applications

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar
accuracy:0.5 % FSO

DS 350

stainless steel sensor
with IO-Link interface

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar
accuracy:0.5% / 0.35 % (opt. 0.25 %) FSO

DS 351

ceramic sensor
with IO-Link interface

nominal pressure:0 ... 0,4 bar bis 0 ... 600 bar relativ, 0 ... 0,6 bar bis 0 ... 600 bar absolut

accuracy:0,5 % FSO

DS 200

stainless steel sensor
universal applications

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DS 201

ceramic sensor
universal applications

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0.5 % FSO

DS 202

stainless steel sensor (welded)
medical technology, oxygen applications

nominal pressure:0 ... 6 bar up to 0 ... 600 bar

accuracy:0.5 % FSO

DS 210

stainless steel sensor (without media isolation)
HVAC

nominal pressure:0 ... 10 mbar up to 0 ... 1000 mbar

accuracy:0.35 % FSO

DS 214

stainless steel sensor (welded)
Plant and Machine Engineering

nominal pressure:0 ... 600 bar up to 0 ... 2200 bar

accuracy:0,35 % FSO

DS 217

stainless steel sensor (welded)
hydraulics, oxygen applications

nominal pressure:0 ... 6 bar up to 0 ... 600 bar

accuracy:0.5 % FSO

DS 230

ceramic sensor
pneumatics, hydraulics

nominal pressure:0 ... 2 bar up to 0 ... 400 bar

accuracy:1.5 % FSO

DS 233

silicon sensor
Heating and Air Conditioning

nominal pressure:0 ... 6 mbar up to 0 ... 1000 mbar

accuracy:0,35 % FSO

DS 400P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DS 350P

stainless steel sensor (flush)
Food industry, Pharmacy

nominal pressure:from 0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.5% / 0.35 % (opt. 0.25 %) FSO

DS 200P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DS 201P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 60 bar up to 0 ... 400 bar

accuracy:0.5 % FSO

DS 4

silicon sensor
pneumatics

nominal pressure:0 ... 1 bar up to 0 ... 10 bar, 0 ... -1 bar

accuracy:1 % FSO

iS 4

silicon sensor
pneumatics

nominal pressure:0 ... 10 bar

accuracy:0.5 % FSO

DS 5

stainless steel sensor (welded)
mobile hydraulics, industrial gas

nominal pressure:0 ... 16 bar up to 0 ... 600 bar
accuracy:0,5 % FSO

DS 6

ceramic sensor
hydraulics

nominal pressure:0 ... 2 bar up to 0 ... 400 bar
accuracy:1 % FSO

Product brochure 'pressure switches'

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download brochure
