Pressure transmitter

pressure ranges -1 ... 10 mbar to -1 ... 6000 bar

Based on different sensor technologies, combined with housing materials of stainless steel and various plastics, the industrial transmitters are suitable for almost all industrial gases and fluids.
Our industrial pressure transmitter may be adapted to almost any application due to a variety of electrical and mechanical connections.

PRODUCT MATRIX 'PRESSURE TRANSMITTER ANALOG'

XMP i

stainless steel sensor
process, oil and gas industry

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0,1 % FSO

XMP ci

ceramic sensor
process, oil and gas industry

nominal pressure:0 ... 160 mbar up to 0 ... 20 bar

accuracy:0.1 % FSO

process pressure transmitter with ball housing and LCD display

x|act i

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 400 mbar up to 0 ... 40 bar

accuracy:0.1 % FSO

x|act ci

ceramic sensor (flush)
hygienical application

nominal pressure:0 ... 160 mbar up to 0 ... 20 bar

accuracy:0.1 % FSO

pressure transmitter precision, vacuum-proof

DMP 331 Pi

stainless steel sensor (flush)
hygienic applications

nominal pressure:0 ... 400 mbar to 0 ... 40 bar

accuracy:0.1 % FSO

DMP i

stainless steel sensor
laboratory, environmental industry

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0.1 % FSO

DMP 334i

stainless steel sensor (welded)
Plant and Machine Engineering

nominal pressure:0 ... 600 up to 0 ... 2.200 bar

accuracy:0.2 % FSO

DMP 320

stainless steel sensor
with fast response time

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.1 % FSO

DMP 321

stainless steel sensor
universal application

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.25 % (opt. 0.1 %) FSO

DMP 331

stainless steel sensor
universal applications

nominal pressure:0 ... 100 mbar up to 0 ... 60 bar

accuracy:0.35 % (opt. 0.25 % / 0,1%) FSO

DMP 333

stainless steel sensor
universal applications

nominal pressure:0 ... 100 bar up to 0 ... 600 bar

accuracy:0.35 % (opt. 0.25 % / 0,1%) FSO

DMP 334

stainless steel sensor (welded)
plant and mechanical engineering

nominal pressure:0 ... 600 bar up to 0 ... 2.200 bar

accuracy:0.35 % FSO

DMP 335

stainless steel sensor (welded)
medical technology, hydraulics

nominal pressure:0 ... 16 bar up to 0 ... 600 bar

accuracy:0.5 % FSO

DMP 336

stainless steel sensor (welded)
hydrogen, fuel cell

nominal pressure:0 ... 16 up to 0 .... 1000 bar

accuracy:0,5 % FSO

DMP 339

stainless steel sensor
flush version G 1/4"

nominal pressure:0 ... 60 bar up to 0 ... 600 bar

accuracy:0.35 % FSO

DMP 343

stainless steel sensor (without media isolation)
HVAC

nominal pressure:0 ... 10 mbar up to 0 ... 1000 mbar

accuracy:0.35 % FSO

DMK 331

ceramic sensor
universal applications

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0.5 % FSO

DMK 351

ceramic sensor
laboratory techniques, biogas plants

nominal pressure:0 ... 40 mbar up to 0 ... 20 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DMP 457

stainless steel sensor
marine, shipbbuilding, offshore

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DMK 387

ceramic sensor
plant- and machine engineering

nominal pressure:from 0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DMK 457

ceramic sensor
marine, shipbbuilding, offshore

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0.5 % FSO

DMK 458

ceramic sensor
marine, shipbbuilding, offshore

nominal pressure:0 ... 40 mbar up to 0 ... 20 bar

accuracy:0.25 % (opt. 0.1 %) FSO

DMP 331P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DMP 333P

stainless steel diaphragm (flush welded)
for viscous media

nominal pressure:0 ... 60 bar up to 0 ... 600 bar

accuracy:0,35 % (Opt. 0,25 %) FSO

DMP 339P

stainless steel sensor (flush)
pressure port flush G 1/4"

nominal pressure range0 ... 25 bar up to 0 ... 600 bar

accuracy:0,5 % FSO

DMK 331P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 60 bar up to 0 ... 400 bar

accuracy:0.5 % FSO

DMK 351P

ceramic sensor (flush)
hygienical application

nominal pressure:0 ... 40 mbar up to 0 ... 20 bar

accuracy:0.35 % (opt. 0.25 %) FSO

17.600 G

stainless steel sensor (welded)
mobile hydraulics

nominal pressure:0 ... 6 bar up to 0 ... 600 bar

accuracy:0.5 % FSO

17.609 G

stainless steel sensor (welded)
refrigeration

nominal pressure:0 ... 6 bar up to 0 ... 60 bar / -1 ... 6 bar up to -1 ... 60 bar

accuracy:0.5 % FSO

17.620 G

stainless steel sensor (welded)
mobile hydraulic, general mechanical engineering

nominal pressure:0 ... 16 bar up to 0 ... 1000 bar

accuracy:0.5 % FSO

18.600 G

silicon sensor
pneumatics

nominal pressure:0 ... 100 mbar up to 0 ... 6 bar

accuracy:0.5 % FSO

18.601 G

stainless steel sensor
general industrial applications

nominal pressure:0 ... 100 mbar up to 0 ... 6 bar

accuracy:0.5 % FSO

18.605 G

stainless steel sensor
general industrial applications

nominal pressure:0 ... 1 mH2O up to 0 ... 10 mH2O

accuracy:0.5 % FSO

26.600 G

ceramic sensor
universal applications

nominal pressure:0 ... 1 bar up to 0 ... 400 bar

accuracy:0.5 % FSO

OEM pressure transmitter with ISO 4400-plug and G 1/4" connection

30.600 G

ceramic sensor
universal applications

nominal pressure:0 ... 1,6 bar up to 0 ... 250 bar

accuracy:1 % FSO

Product brochure 'pressure transmitter'

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download brochure

Pressure transmitter

with digital interfaces

IO-Link | RS 485 Modbus RTU | I²C
Pressure ranges 0 … 100 mbar up to 0 … 600 bar

Whereas pressure transmitters with analogue output signals and switching contacts [>>] dominated the market a few years ago, devices with digital interfaces are becoming increasingly important - Industry 4.0 sends its regards. BD|SENSORS has taken up this challenge like no other provider of electronic pressure measurement devices. As impressively documented by the product matrix below, BD|SENSORS has probably the widest product range of pressure measurement devices with global interfaces in the world.

PRODUCTMATRIX DIGITAL INTERFACE

DCT 531i

pressure sensor: stainless steel
mit RS485 Modbus RTU

nominal pressure:0 ... 100 mbar up to 0 ... 400 bar

accuracy:0.1 % FSO

DCT 531

pressure sensor: stainless steel
with RS485 Modbus RTU

nominal pressure:0 ... 100 mbar up to 0 ... 400 bar

accuracy:0.25% FSO

DCT 532

pressure sensor: stainless steel
with i²C interface

nominal pressure:0 ... 100 mbar up to 0 ... 400 bar

accuracy:0,25 % FSO

DCT 533

pressure sensor: stainless steel
with IO-Link interface

nominal pressure:0 ... 100 mbar up to 0 ... 400 bar

accuracy:0.35 % (opt. 0.25%) FSO

DCT 531P

pressure sensor: stainless steel
with RS485 Modbus RTU

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0,25 % FSO

DCT 533P

pressure sensor: st. steel (strain gauge)
with IO-Link interface

nominal pressure:from 0 ... 100 mbar up to 0 ... 40 bar

accuracy:35 % (Opt. 0,25%) FSO

DCT 571

pressure sensor: ceramic
with RS485 Modbus RTU

nominal pressure:from 0 ... 100 mbar up to 0 ... 60 bar

accuracy:0,35% (opt. 0,25%) FSO

DCT 541

pressure sensor: stainless steel
with RS485 Modbus RTU

nominal pressure:0 ... 16 bar up to 0 ... 1000 bar

accuracy:0,5 % FSO

Product Brochure "pressure transmitter digital"

Product brochure 'pressure transmitter digital'

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download brochure

differential pressure transmitters

For differential pressure measurement
pressure ranges 0 ... 1 mbar up to 0 ... 70 bar

Thanks to different sensor technologies combined with compact aluminium die-cast cases or plastic housings, our differential pressure transmitters may be used for numerous fluids and gases, e. g. for monitoring ventilation ducts, filters and fans in HVAC areas as well as for level measurement in closed pressurized tanks.

DPT 200

stainless steel sensor
process, oil and gas industry

differential pressurevon 1 mbar up to 20 bar

accuracy:0.075 % FSO

DPT 100

stainless steel sensor
test engineering, machine and plant engineering

differential pressurefrom10 mbar up to 20 bar

accuracy:0,1 % FSO

DMD 331

stainless steel sensor
plant and mechanical engineering

differential pressure0 ... 20 mbar up to 0 ... 16 bar

accuracy:0.5 % FSO

DMD 831

stainless steel sensor
plant and mechanical engineering

differential pressure0 ... 1 bar up to 0 ... 70 bar

accuracy:2 % FSO

DMD 341

silicon sensor
plant and mechanical engineering

differential pressure0 ... 6 mbar up to 0 ... 1000 mbar

accuracy:0.35 % / 1% / 2% FSO

DPS 200

silicon sensor
HVAC

differential pressure0 ... 6 mbar up to 0 ... 1.000 mbar

accuracy:2 % FSO

DPS 300

silicon sensor
HVAC, medical

differential pressure0 ... 1,6 mbar up to 0 ... 1000 mbar

accuracy:1 % FSO

Product brochure 'differential pressure transmitters'

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download brochure

digital pressure gauges

pressure ranges 0 … 100 mbar to 0 … 600 bar

With a great variety of mechanical and electrical connections, BD|SENSORS offers a new generation of digital pressure gauges for different applications. Due to the two sensor technologies in use (stainless steel sensor or ceramic sensor), our digital pressure gauges are suitable for nearly all fluids, pasty media and gases.
The display module is continuously rotatable, so that a clear readability is guaranteed even in unsual installation positions.

DM 01

stainless steel sensor
test and calibration equipment

nominal pressure:0 ... 100 mbar up to 0 ... 400 bar

accuracy:0.1 % FSO

Battery Powered Precision Digital Gauge for Leak Testing

DL 01

stainless steel sensor
leak testing, pipeline monitoring

nominal pressure:0 …100 mbar up to 0 ... 400 bar

accuracy:0.1 % FSO

BAROLI 02

stainless steel sensor
laboratory, environmental industry

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.25 % FSO

BAROLI 05

ceramic sensor
laboratory, environmental industry

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0.5 % FSO

BAROLI 02P

stainless steel sensor (flush)
hygienic applications

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.25 % FSO

BAROLI 05P

stainless steel diaphragm (flush welded)
hygienic applications

nominal pressure:0 ... 60 bar up to 0 ... 400 bar

accuracy:0.5 % FSO

DM 10

ceramic sensor
plant and mechanical engineering

nominal pressure:0 ... 1,6 bar up to 0 ... 250 bar

accuracy:1.0 % FSO

DM 17

stainless steel sensor
Plant and Machine Engineering

nominal pressure:0 ... 6 bar up to 0 ... 600 bar

accuracy:1.0 % FSO

Product brochure 'digital pressure gauges'

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download brochure

Electronic pressure switches

Types with display

pressure range 0 ... 6mbar to 0 ... 2200 bar
with up to 4 contacts

Due to the simple handling as well as the variety of software features (switching points and hysteresis freely configurable, delay function, Min/Max-value data storage, display and analogue output signal scalable, etc.) the DS 200 / DS 400 series is especially suitable as an intelligent pressure switch for general plant and machine construction and the processing industry.

Types without display

pressure ranges 0 ... 1 bar up to0 ... 400 bar
for OEM applications

These electronic pressure switches are used in hydraulic and pneumatic applications for monitoring and controlling the pressure via switching outputs.

DS 400

stainless steel sensor
Hygienic Design

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DS 401

ceramic sensor
universal applications

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0.5 % FSO

DS 350

stainless steel sensor
with IO-Link interface

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.5% / 0.35 % (opt. 0.25 %) FSO

DS 351

ceramic sensor
with IO-Link interface

nominal pressure:0 ... 0,4 bar bis 0 ... 600 bar relativ, 0 ... 0,6 bar bis 0 ... 600 bar absolut

accuracy:0,5 % FSO

DS 200

stainless steel sensor
universal applications

nominal pressure:0 ... 100 mbar up to 0 ... 600 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DS 201

ceramic sensor
universal applications

nominal pressure:0 ... 400 mbar up to 0 ... 600 bar

accuracy:0.5 % FSO

DS 202

stainless steel sensor (welded)
medical technology, oxygen applications

nominal pressure:0 ... 6 bar up to 0 ... 600 bar

accuracy:0.5 % FSO

DS 210

stainless steel sensor (without media isolation)
HVAC

nominal pressure:0 ... 10 mbar up to 0 ... 1000 mbar

accuracy:0.35 % FSO

DS 214

stainless steel sensor (welded)
Plant and Machine Engineering

nominal pressure:0 ... 600 bar up to 0 ... 2200 bar

accuracy:0,35 % FSO

DS 217

stainless steel sensor (welded)
hydraulics, oxygen applications

nominal pressure:0 ... 6 bar up to 0 ... 600 bar

accuracy:0.5 % FSO

DS 230

ceramic sensor
pneumatics, hydraulics

nominal pressure:0 ... 2 bar up to 0 ... 400 bar

accuracy:1.5 % FSO

DS 233

silicon sensor
Heating and Air Conditioning

nominal pressure:0 ... 6 mbar up to 0 ... 1000 mbar

accuracy:0,35 % FSO

DS 400P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DS 350P

stainless steel sensor (flush)
Food industry, Pharmacy

nominal pressure:from 0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.5% / 0.35 % (opt. 0.25 %) FSO

DS 200P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.35 % (opt. 0.25 %) FSO

DS 201P

stainless steel sensor (flush)
hygienical application

nominal pressure:0 ... 60 bar up to 0 ... 400 bar

accuracy:0.5 % FSO

DS 4

silicon sensor
pneumatics

nominal pressure:0 ... 1 bar up to 0 ... 10 bar, 0 ... -1 bar

accuracy:1 % FSO

iS 4

silicon sensor
pneumatics

nominal pressure:0 ... 10 bar

accuracy:0.5 % FSO

DS 5

stainless steel sensor (welded)
mobile hydraulics, industrial gas

nominal pressure:0 ... 16 bar up to 0 ... 600 bar

accuracy:0,5 % FSO

DS 6

ceramic sensor
hydraulics

nominal pressure:0 ... 2 bar up to 0 ... 400 bar

accuracy:1 % FSO

Product brochure 'pressure switches'

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download brochure

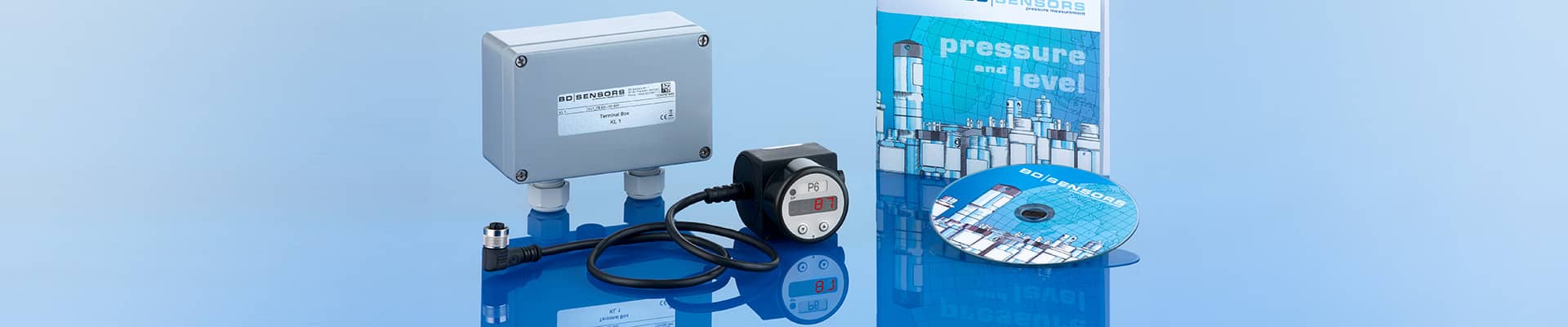

Pressure measuring devices - accessories

KL 1

terminal box aluminium

KL 2

terminal box plastics

submersible probes | level probes

BD|SENSORS offers a wide range of submersible probes designed for the measurement of fill levels of fluid or paste-like media or for levels of water and waste-water. The sensors are based on hydrostatic pressure, i.e. the fill level is found by measuring pressure.

The submersible probes are available with many types of enclosure materials, pressure sensors and diameters and will thus in their standard version already offer perfect solutions to predominant installation conditions.
The detachable submersible probes are noteworthy. These designs allow very simple detachment of probe and cable, requiring no tools. This is a decisive advantage during maintenance or servicing, since only part of the submersible probe will require attention, not the entire installation.

with stainless steel sensor LMP 308i | LMP 308
with ceramics sensor LMK 358H | LMK 358 | LMK 808

The range also includes other designs such as submersible probes with integrated overvoltage protection, temperature sensors or data loggers, also types communicating via RS 485 interface or HART® protocol.

MATRIX LEVEL PROBES

DCL 531i

stainless steel sensor
with RS485 Modbus RTU Ø 26.5

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O

accuracy:0.1 % FSO

LMP 307i

stainless steel sensor
stainless-steel probe Ø 26.5

nominal pressure:0 ... 4 mH2O up to 0 ... 200 mH2O

accuracy:0.1 % FSO

LMP 308i

stainless steel sensor
detachable stainless steel probe Ø 35

nominal pressure:0 ...4 mH2O up to 0...200 mH2O

accuracy:0.1 % FSO

LMK 358 H

ceramic sensor
detachable stainless steel probe Ø 39.5

nominal pressure range0 ... 60 cmH2O up to 0 ... 100 mH2O

accuracy:0.1 %

LMK 382 H

ceramic sensor
steel probe Ø 39.5

nominal pressure range0 ... 60 cmH2O up to 0 ... 200 mH2O

accuracy:0.1 % FSO

LMK 387 H

ceramic sensor
with HART®-communication

nominal pressure:von 0 ... 1 mH2O bis 0 ... 100 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

DCL 531

stainless steel sensor
with RS485 Modbus RTU

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O

accuracy:0.25 % FSO

DCL 532

stainless steel sensor
with I2C

nominal pressure:from 0 ... 1 mH2O up to 0 ... 40 mH2O

accuracy:0.25 % (Opt. 0.1 %) FSO

DCL 571

ceramic sensor
with RS485 Modbus RTU

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O

accuracy:0.35% (opt. 0.35 %) FSO

LMK 458

ceramic sensor
stainless steel probe Ø 39,5

nominal pressure:0 ... 40 cmH2O up to 0 ... 200 mH2O

accuracy:0.35 % (opt. 0.1 %) FSO

LMK 458 H

ceramic sensor
hydrostatic HART-probe Ø 39,5

nominal pressure:0 ... 60 cmH2O up to 0 ... 200 mH2O

accuracy:0.1 % FSO

LMK 487

ceramic sensor
probe Ø 22mm

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O

accuracy:0.25 % FSO

LMP 305

stainless steel sensor
slimline-probe Ø 19

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

LMP 307

stainless steel sensor
stainless steel probe Ø 27

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O

accuracy:0.35 % (opt. 0.25% / 0.1 %) FSO

LMP 307T

stainless steel sensor
stainless steel probe Ø 27

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

LMP 308

stainless steel sensor
detachable stainless steel probe Ø 35

nominal pressure:0 ... 1 mH2O up to 0 ... 250 mH2O

accuracy:0.35 % (opt. 0.25% / 0.1 %) FSO

LMK 306

ceramic sensor
stainless steel probe Ø 17

nominal pressure:0 ... 6 mH2O up to 0 ... 200 mH2O

accuracy:0.5 % FSO

LMK 307

ceramic sensor
stainless steel probe Ø 27

nominal pressure:0 ... 4 mH2O bis 0 ... 250 mH2O

accuracy:0,5 % FSO

LMK 307 T

ceramic sensor (flush)
level and temperature transmitter Ø 26,5

nominal pressure:from 0 ... 4 mH2O up to 0 ... 250 mH2O

accuracy:0,5 % FSO

LMK 358

ceramic sensor
detachable stainless steel probe Ø 39,5

nominal pressure:0 ... 40 cmH2O up to 0 ... 100 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

LMK 382

ceramic sensor
stainless steel probe Ø 39,5

nominal pressure:0 ... 40 cmH2O up to 0 ... 200 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

LMK 387

ceramic sensor (flush)
Stainless Steel Probe 22 mm

nominal pressure:from 0 ... 1 mH2O up to 0 ... 100 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

LMK 806

ceramic sensor (flush)
Plastic Probe Ø 21

nominal pressure:from 0 ... 6 mH2O up to 0 ... 100 mH2O

accuracy:0,5% FSO

LMK 807

ceramic sensor
plastic submersible probe Ø 35

nominal pressure:0 ... 4 mH2O up to 0 ... 100 mH2O

accuracy:0.5 % FSO

LMK 808

ceramic sensor
detachable plastic level probe Ø 35

nominal pressure:0 ... 1 mH2O up to 0 ... 100 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

LMK 809

ceramic sensor
plastic probe Ø 45

nominal pressure:0 ... 40 cmH2O up to 0 ... 100 mH2O

accuracy:0.35 % (opt. 0.25 %) FSO

Product catalogue hydrostatic probes and screw-in transmitters

Please visit our up to date product catalog for information on our range of pressure transmitters. Please download the pdf file here, fast, easy and at no charge.

download product catalogue

screw-in transmitters

For level and process industry
with flush-mounted stainless steel or ceramic diaphragm

pressure ranges 0 … 40 mbar to 0 … 60 bar

Due to the ability to combine stainless steel and ceramic diaphragm with housing materials of stainless steel or plastic and different sealing materials, our screw-in transmitters are suitable for almost all liquids occuring in industrial level and process measurement.

MATRIX LEVEL PROBES

LMP 331i

stainless steel sensor
laboratory, environmental industry

nominal pressure:0 ... 400 mbar up to 0 ... 40 bar

accuracy:0.1 % FSO

LMP 331

stainless steel sensor
plant and mechanical engineering

nominal pressure:0 ... 100 mbar up to 0 ... 40 bar

accuracy:0.35 % (opt. 0.25% / 0.1 %) FSO

LMK 331

ceramic sensor (flush)
plant and mechanical engineering

nominal pressure:0 ... 400 mbar up to 0 ... 60 bar

accuracy:0.5 % FSO

LMK 351

ceramic sensor (flush)
environmental industry, renewable energy

nominal pressure:0 ... 40 mbar up to 0 ... 20 bar

accuracy:0.35 % (opt. 0.25 %) FSO

Product brochure 'level measurement'

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download brochure

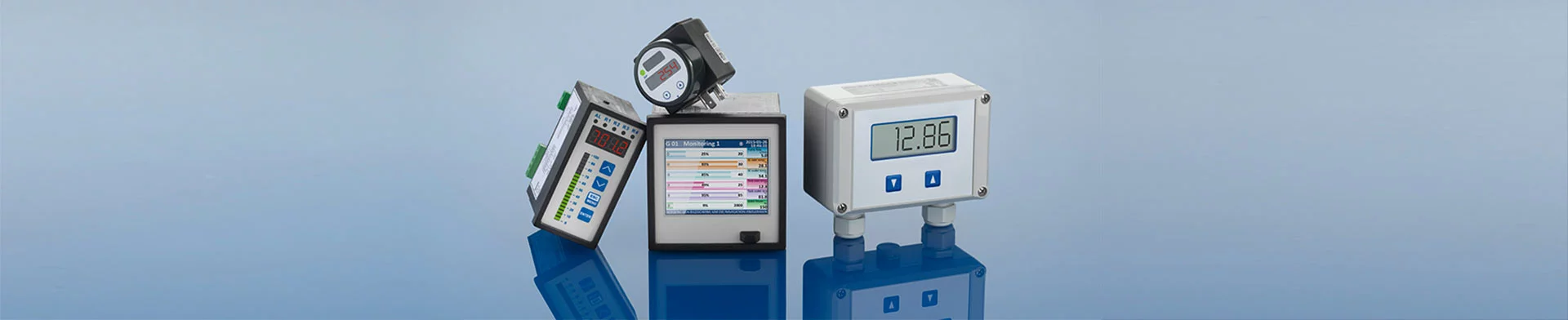

Evaluation devices and displays

In order to correctly interpret analogue signals, display and evaluation devices are indispensable.

Besides the classic version with display and analogue outputs (PA430, ASM430), BD|SENSORS offers with the process display of CIT-series an evaluation device that can be combined with our pressure measuring devices and hydrostatic submersible probes and is furthermore also suitable for acquiring for example temperature and potentiometer signals.

PA 430

plug-on display for the current loop with contacts

display:4-digit LED-display

output:0/ 1/ 2 contacts; 4 … 20 mA, 0 … 10 V

PA 440

field display for the current loop with contacts

display:4-digit LED / LC display

output:0/ 1/ 2 contacts; 4 … 20 mA, 0 … 10 V

CIT 200

process display 72 x 36 mm

display:4-digit LED-display

CIT 250

process display 72 x 36 mm with contacts

display:4-digit LED-display

output:0/ 1/ 2 contacts

CIT 300

process display 96 x 48 mm with contacts and analog output

display:4-digit LED-display

output:0/ 2/ 4 contacts
0/4 … 20 mA

CIT 350

process display 96 x 48 mm with contacts and analog output

display:4-digit LED-display20-segment bargraph

output:0/ 2/ 4 contacts
0/4 … 20 mA

CIT 600

multichannel process display 96 x 96 mm with contacts

display:graphic LC display

output:2 OC-contacts

Product catalogue displays and evaluation devices

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download product catalogue

data logger

The data logger can record up to 2 million measurement values with a maximum measuring rate of 1 Hz in internal memory (8 MB).

By connecting a USB stick, the capacity can be enlarged to several GB. The LoogySoft software (CIT 600 / CIT 650 ) or DAQ-Manager (CIT 700 / CIT 750) helps the user displaying (table, graphic), saving, evaluating and exporting the recorded data.

CIT 650

multichannel process display 96 x 96 mm datalogger and contacts

display:graphic LC display

output:2 OC-contacts

CIT 700 | 750

multichannel process display 144 x 144 mm with datalogger, contacts and analog outputs

display:graphic TFT-display, touchscreen

CIT 200

process display 72 x 36 mm

display:4-digit LED-display

Product catalogue displays and evaluation devices

Please visit our up to date product catalog for information on our range of pressure transducers. Please download the pdf file here, fast, easy and at no charge.

download product catalogue
